Single Cycle Processor & Pipeline
Published:
这篇博客以中国科学技术大学《计算机组成原理（COD2022）》课程为依托，针对 RISC-V CPU 进行设计，仅做 Verilog 代码展示。
关于单周期CPU

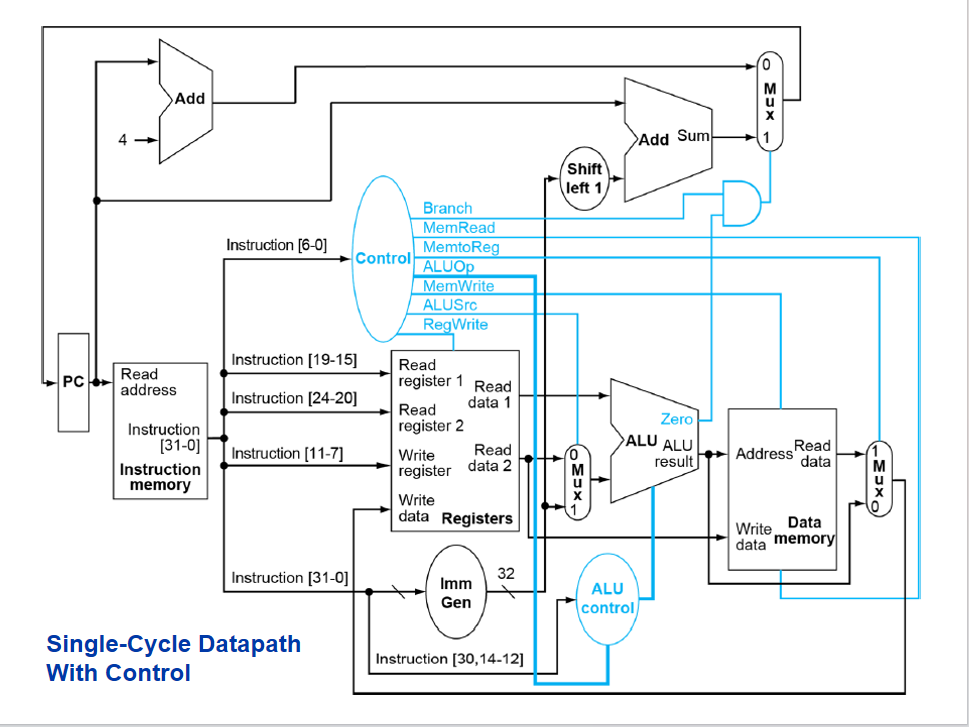

数据通路：
要求实现下列十条指令：
add rd, rs1, rs2 # x[rd] = x[rs1] + x[rs2]
addi rd, rs1, imm # x[rd] = x[rs1] + sext(imm)
sub rd, rs1, rs2 # x[rd] = x[rs1] - x[rs2]
auipc rd, imm # x[rd] = pc + sext(imm[31:12] << 12)
lw rd, offset(rs1) # x[rd] = M[x[rs1] + sext(offset)]
sw rs2, offset(rs1) # M[x[rs1]+sext(offset)=x[rs2]
beq rs1, rs2, offset # if (rs1 == rs2) pc += sext(offset)
blt rs1, rs2, offset # if (rs1 < s rs2) pc += sext(offset)
jal rd, offset # x[rd] = pc+4; pc += sext(offset)
jalr rd, offset(rs1) # t =pc+4; pc=(x[rs1]+sext(offset))&~1; x[rd]=t
代码展示
module reg_file(
input clk,
input [4:0]a1,a2,a3,
input [31:0]wd3,
input we3,
output [31:0]rd1,rd2,x18,x19,x20,x21,x22,x23
);
reg [31:0] reg_file[0:31];
integer i;
initial
begin
for(i=0;i<32;i=i+1) reg_file[i]=0;
end
always@(posedge clk)
begin
if(we3&&(a3))
reg_file[a3]<=wd3;
end
assign rd1 = a1 ? reg_file[a1] : 32'h0;
assign rd2 = a2 ? reg_file[a2] : 32'h0;
assign x18 = reg_file[18];
assign x19 = reg_file[19];
assign x20 = reg_file[20];
assign x21 = reg_file[21];
assign x22 = reg_file[22];
assign x23 = reg_file[23];
endmodule
//
module alu(
input [31:0]a,b,
input [1:0] alu_ctrl, //0是清零，1是加，2是减
output reg [31:0] alu_out
);
/*wire signed [31:0] signed_a ;
wire signed [31:0] signed_b ;*/ //用不到，这里计算不用补码
always@(*)
begin
case(alu_ctrl)
2'h0: alu_out=32'h0;
2'h1: alu_out=a+b;
2'h2: alu_out=a-b;
default: alu_out =32'h0;
endcase
end
endmodule
//
module pc_calc(
input clk,
input rst,
input branch,
input [31:0]alu_out,
output reg [31:0]pc,
output [31:0] pc_plus4
);
always@(posedge clk or posedge rst)
begin
if(rst)
pc<=32'h00003000;
else if(branch)
pc<=alu_out;
else
pc<=pc_plus4;
end
assign pc_plus4=pc+32'h4;
endmodule
//
module bran(
input [31:0] a,
input [31:0] b,
input [2:0]comp_ctrl, //0是beq，4是blt
input do_branch,
input do_jump,
output branch
);
wire signed [31:0]signed_a;
wire signed [31:0]signed_b;
reg taken; //是1且do_branch则跳转
assign signed_a=a;
assign signed_b=b;
always@(*)
begin
case(comp_ctrl)
3'h0: taken = (signed_a==signed_b);
3'h4: taken = (signed_a<signed_b);
default: taken = 0;
endcase
end
assign branch = (taken&&do_branch) || do_jump;//b型或jalr，jal都需跳转
endmodule
//
module controller(
input [31:0]inst,
output rf_wr_en,
output alu_a_sel,
output alu_b_sel,
output reg [1:0]alu_ctrl,
output reg [2:0]dm_rd_ctrl,
output reg [1:0]dm_wr_ctrl,
output reg [1:0]rf_wr_sel,
output [2:0] comp_ctrl,
output do_branch,
output do_jump
);
wire [6:0] opcode;
wire [2:0] funct3;
wire [6:0] funct7;
assign opcode = inst[6:0];
assign funct3 = inst[14:12];
assign funct7 = inst[31:25];
wire is_add;
wire is_addi;
wire is_sub;
wire is_auipc;
wire is_lw;
wire is_sw;
wire is_beq;
wire is_blt;
wire is_jal;
wire is_jalr;
assign is_add = (opcode==7'h33)&&(funct3==3'h0)&&(funct7==7'h00);
assign is_addi = (opcode==7'h13)&&(funct3==3'h0);
assign is_sub = (opcode==7'h33)&&(funct3==3'h0)&&(funct7==7'h20);
assign is_auipc = (opcode==7'h17);
assign is_lw = (opcode==7'h03)&&(funct3==3'h2);
assign is_sw = (opcode==7'h23)&&(funct3==3'h2);
assign is_beq = (opcode==7'h63)&&(funct3==3'h0);
assign is_blt = (opcode==7'h63)&&(funct3==3'h4);
assign is_jal = (opcode==7'h6f);
assign is_jalr = (opcode==7'h67)&&(funct3==3'h0);
wire is_add_type;
wire is_u_type;
wire is_jump_type;
wire is_b_type;
wire is_r_type;
wire is_i_type;
wire is_s_type;
assign is_b_type = is_beq | is_blt;
assign is_r_type = is_add | is_sub;
assign is_i_type = is_jalr | is_lw | is_addi;
assign is_s_type = is_sw;
assign is_u_type = is_auipc;
assign is_jump_type = is_jal;
assign is_add_type = is_auipc | is_add | is_addi | is_jal | is_jalr | is_b_type | is_s_type | is_lw; //除了sub指令alu全用加
always@(*)
begin
if(is_add_type) alu_ctrl=2'h1;
else if(is_sub) alu_ctrl=2'h2;
else alu_ctrl=2'h0;
end
assign rf_wr_en = is_u_type | is_jump_type | is_r_type | is_i_type;
assign alu_a_sel = is_r_type | is_i_type | is_s_type;
assign alu_b_sel = ~ is_r_type;
always@(*)
begin
if(is_lw) dm_rd_ctrl=3'h5;
else dm_rd_ctrl=3'h0;
end
always@(*)
begin
if(is_sw) dm_wr_ctrl=2'h3;
else dm_wr_ctrl=2'h0;
end
always@(*)
begin
if(is_lw) rf_wr_sel=2'h3;
else if(((~is_jalr)&is_i_type) | is_u_type | is_r_type) rf_wr_sel=2'h2;
else if(is_jalr | is_jal) rf_wr_sel=2'h1;
else rf_wr_sel=2'h0;
end
assign comp_ctrl = funct3;
assign do_branch = is_b_type;
assign do_jump = is_jal | is_jalr;
endmodule
//
module imm(
input [31:0] inst,
output reg [31:0] imm_out
);
wire [6:0] inst_type;
assign inst_type = inst[6:0];
always@(*)
begin
case(inst_type)
7'h13 : imm_out=,inst[30:20]};//addi
7'h17 : imm_out={inst[31:12],12'h0}; //auipc
7'h03 : imm_out=,inst[30:20]};//lw
7'h23 : imm_out=,inst[30:25],inst[11:7]};//sw
7'h63 : imm_out=,inst[7],inst[30:25],inst[11:8],1'b0};//beq,blt
7'h6f : imm_out=,inst[19:12],inst[20],inst[30:21],1'b0};//jal
7'h67 : imm_out=,inst[30:20]};//jalr
default : imm_out = 32'h0;
endcase
end
endmodule
//
module mem(
input clk,
input [31:0] im_addr,//就是pc
output [31:0] im_dout, //就是inst
input [2:0] dm_rd_ctrl,
input [1:0] dm_wr_ctrl,
input [31:0] dm_addr,//就是alu_out,比如sw计算要修改的数据位置
input [31:0] dm_din,//就是rf_rd2
input [7:0] m_rf_addr,
output reg [31:0] dm_dout,//eg，读取数据段给寄存器
output [31:0] m_data
);
wire [31:0]im_addr_use;
assign im_addr_use=(im_addr-32'h00003000)/4;//就比如把3000的指令位置变成0，方便下面调用ram
dist_mem_inst mem_inst(im_addr_use[7:0],32'h0,clk,1'b0,im_dout);//得到im_dout，且im_mem不会改，所以we=0;
wire [31:0]dm_addr_use;
wire [31:0]dm_out;
assign dm_addr_use=dm_addr/4;
dist_mem_data mem_data(dm_addr_use[7:0],dm_din,m_rf_addr,clk,dm_wr_ctrl,dm_out,m_data);
always@(*)
begin
case(dm_rd_ctrl)//对于sw
3'h5: dm_dout<=dm_out;
default: dm_dout<=32'h0;
endcase
end
endmodule
//
module cpu (
input clk,
input rst,
//IO_BUS
/* output [7:0] io_addr, //led和seg的地址
output [31:0] io_dout, //输出led和seg的数据
output io_we, //输出led和seg数据时的使能信号
input [31:0] io_din, //来自sw的输入数据*/
//Debug_BUS
input [7:0] m_rf_addr, //存储器(MEM)或寄存器堆(RF)的调试读口地址
output [31:0] m_data, //从MEM读取的数据
output [31:0] x18,x19,x20,x21,x22,x23,
output [31:0] pc //PC的内容
);
wire branch;
wire [31:0] pc_plus4;
wire [31:0] inst;
wire [31:0] imm_out;
wire rf_wr_en;
wire alu_a_sel;
wire alu_b_sel;
wire [1:0] alu_ctrl;
wire [2:0] dm_rd_ctrl;
wire [1:0] dm_wr_ctrl;
wire [1:0] rf_wr_sel;
wire [2:0] comp_ctrl;
wire do_branch;
wire do_jump;
reg [31:0] rf_wd3;
wire [31:0] rf_rd1,rf_rd2;
wire [31:0] alu_a,alu_b,alu_out;
wire [31:0] dm_dout;
pc_calc pc_calc(clk,rst,branch,alu_out,pc,pc_plus4);
mem mem(clk,pc,inst,dm_rd_ctrl,dm_wr_ctrl,alu_out,rf_rd2,m_rf_addr,dm_dout,m_data);
imm imm(inst,imm_out);
controller controller(inst,rf_wr_en,alu_a_sel,alu_b_sel,alu_ctrl,dm_rd_ctrl,dm_wr_ctrl,rf_wr_sel,comp_ctrl,do_branch,do_jump);
always@(*)
begin
case(rf_wr_sel)
2'b00: rf_wd3 = 32'h0;
2'b01: rf_wd3 = pc_plus4;
2'b10: rf_wd3 = alu_out;//eg，sw要修改的数据位置
2'b11: rf_wd3 = dm_dout;//eg，读取数据段给寄存器
default: rf_wd3 = 32'h0;
endcase
end
reg_file reg_file(clk,inst[19:15],inst[24:20],inst[11:7],rf_wd3,rf_wr_en,rf_rd1,rf_rd2,x18,x19,x20,x21,x22,x23);
assign alu_a = alu_a_sel ? rf_rd1 : pc;
assign alu_b = alu_b_sel ? imm_out : rf_rd2;
alu alu(alu_a,alu_b,alu_ctrl,alu_out);
bran bran(rf_rd1,rf_rd2,comp_ctrl,do_branch,do_jump,branch);
endmodule
关于流水线CPU

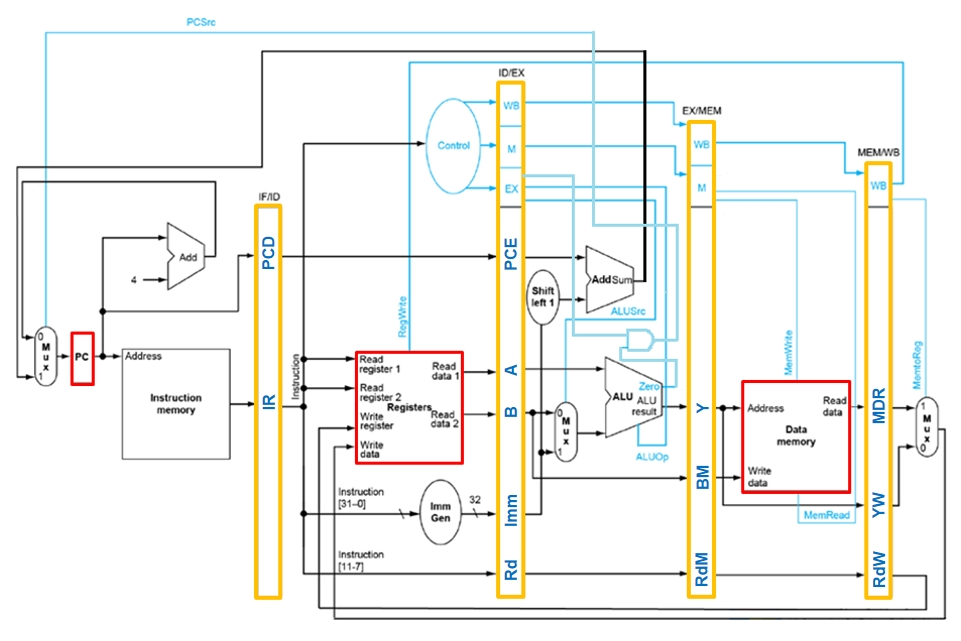

数据通路：
要求实现下列十条指令：
add rd, rs1, rs2 # x[rd] = x[rs1] + x[rs2]
addi rd, rs1, imm # x[rd] = x[rs1] + sext(imm)
sub rd, rs1, rs2 # x[rd] = x[rs1] - x[rs2]
auipc rd, imm # x[rd] = pc + sext(imm[31:12] << 12)
lw rd, offset(rs1) # x[rd] = M[x[rs1] + sext(offset)]
sw rs2, offset(rs1) # M[x[rs1]+sext(offset)=x[rs2]
beq rs1, rs2, offset # if (rs1 == rs2) pc += sext(offset)
blt rs1, rs2, offset # if (rs1 < s rs2) pc += sext(offset)
jal rd, offset # x[rd] = pc+4; pc += sext(offset)
jalr rd, offset(rs1) # t =pc+4; pc=(x[rs1]+sext(offset))&~1; x[rd]=t
代码展示
module alu
#(parameter WIDTH = 4) //数据宽度
(output [WIDTH-1:0] y, //运算结果
output zf, //零标志
output cf, //进位/借位标志
output of, //溢出标志
input [WIDTH-1:0] a, b, //两操作数
input [2:0]m //操作类型
);
reg cf_r,of_r;
reg [WIDTH-1:0]y_r;
assign zf=~|y;
assign y=y_r;
assign cf=cf_r;
assign of=of_r;
localparam ADD=3'b000;
localparam SUB=3'b001;
localparam AND=3'b010;
localparam OR=3'b011;
localparam XOR=3'b100;
always@(*) begin
case (m)
ADD: begin
{cf_r, y_r} = a + b;
of_r = (~a[WIDTH-1] & ~b[WIDTH-1] & y[WIDTH-1]) | (a[WIDTH-1] & b[WIDTH-1] & ~y[WIDTH-1]) ;
end
SUB: begin
{cf_r, y_r} = a - b;
of_r = (~a[WIDTH-1] & b[WIDTH-1] & y[WIDTH-1]) | (a[WIDTH-1] & ~b[WIDTH-1] & ~y[WIDTH-1]) ;
end
AND: begin
y_r=a&b;
end
OR: begin
y_r=a|b;
end
XOR: begin
y_r=a^b;
end
default: begin
end
endcase
end
endmodule
module mux_1
#(parameter N = 32)
(
input i_sel,
input [N-1:0]num0,num1,
output [N-1:0]o_m
);
reg [N-1:0]m_r;
assign o_m=m_r;
always@(*)begin
case (i_sel)
1'd0: m_r=num0;
1'd1: m_r=num1;
default: begin end
endcase
end
endmodule
module mux_2
#(parameter N = 32)
(
input [1:0]i_sel,
input [N-1:0]num0,num1,num2,num3,
output [N-1:0]o_m
);
reg [N-1:0]m_r;
assign o_m=m_r;
always@(*)begin
case (i_sel)
2'd0: m_r=num0;
2'd1: m_r=num1;
2'd2: m_r=num2;
2'd3: m_r=num3;
default: begin end
endcase
end
endmodule
module register_file //32 x WIDTH寄存器堆
#(parameter WIDTH = 32) //数据宽度
(
input clk, //时钟（上升沿有效）
input [4:0] ra0, //读端口0地址
output [WIDTH-1:0] rd0, //读端口0数据
input [4:0] ra1, //读端口1地址
output [WIDTH-1:0] rd1, //读端口1数据
input [4:0] wa, //写端口地址
input we, //写使能，高电平有效
input [WIDTH-1:0] wd, //写端口数据
input [4:0] dbgra,
output [WIDTH-1:0] dbgrd
);
reg [WIDTH-1:0] reg_storage [0:31];
reg [WIDTH-1:0] reg_rd0, reg_rd1, reg_dbg;
assign rd0=reg_rd0;
assign rd1=reg_rd1;
assign dbgrd=reg_dbg;
initial begin
$readmemh("register_file.vec", reg_storage);
end
always @(*) begin
reg_rd0=reg_storage[ra0];
reg_rd1=reg_storage[ra1];
reg_dbg=reg_storage[dbgra];
if(we&&wa!=5'd0) begin
if(ra0==wa)
reg_rd0=wd;
if(ra1==wa)
reg_rd1=wd;
if(dbgra==wa)
reg_dbg=wd;
end
end
always @(posedge clk ) begin
if(we) begin
if(wa!=5'd0)
reg_storage[wa]<=wd;
end
end
endmodule
module cpu_multi_cycle //单周期CPU
(input clk, //时钟（上升沿有效）
input rst, //异步复位，高电平有效
output [15:0]status,
output [31:0]m_data,rf_data,
input [15:0]m_rf_addr,
input [2:0]i_sel,
output reg [31:0]o_sel_data
);
//pipeline regs
reg [31:0]PC=32'd0;
reg [31:0]IF_ID_NPC=32'd0,IF_ID_IR=32'd0;
reg [31:0]ID_EX_NPC=32'd0,ID_EX_IR=32'd0,ID_EX_A=32'd0,ID_EX_B=32'd0,ID_EX_IMMI=32'd0;
reg [31:0]EX_MEM_NPC=32'd0,EX_MEM_Y=32'd0,EX_MEM_B=32'd0;
reg [31:0]MEM_WB_MDR=32'd0,MEM_WB_Y=32'd0;
reg EX_MEM_ZF=1'd0;
reg [4:0]EX_MEM_WA=5'd0,MEM_WB_WA=5'd0;
//control regs
reg [1:0]ID_EX_WB=2'd0,EX_MEM_WB=2'd0,MEM_WB_WB=2'd0;
reg [2:0]ID_EX_M=3'd0,EX_MEM_M=3'd0;
reg [5:0]ID_EX_EX=6'd0;
reg EX_MEM_J=1'd0;
reg [1:0]wb_ctrl;
reg [2:0]m_ctrl;
reg [5:0]ex_ctrl;
//
wire [31:0]alu_result;
wire [31:0]write_reg_data,read_reg_data_1,read_reg_data_2;
wire [31:0]read_mem_data;
wire [31:0]alu_in_2;
wire [4:0]write_reg_addr;
wire RegWrite,MemtoReg;
wire Jump,Branch,MemRead,MemWrite;
wire PCSrc;
wire RegDst,ALUSrc;
wire [2:0]ALUOp;
reg [2:0]ALUm;
wire Zero;
wire [31:0]instruction;
wire [31:0]pc_plus,pc_next;
wire [31:0]br_pc,j_pc,n_pc;
//dbg TODO
/*
assign status={PCSrc,PCwe,IorD,MemWrite,IRWrite,RegDst,MemtoReg,RegWrite,ALUm,ALUSrcA,ALUSrcB,Zero};
always @(*) begin
case (i_sel)
3'd1: o_sel_data=PC;
3'd2: o_sel_data=IR;
3'd3: o_sel_data=MemoryDataRegister;
3'd4: o_sel_data=A;
3'd5: o_sel_data=B;
3'd6: o_sel_data=ALUOut;
3'd7: o_sel_data=read_mem_data;//?
default: begin end
endcase
end*/
//instruction rom
dist_rom ins_rom(.a(PC[9:2]), .spo(instruction));
//reg file
register_file #(32) my_rf(.clk(clk), .ra0(IF_ID_IR[25:21]), .rd0(read_reg_data_1), .ra1(IF_ID_IR[20:16]), .rd1(read_reg_data_2), .wa(MEM_WB_WA), .we(RegWrite), .wd(write_reg_data),.dbgra(m_rf_addr[4:0]),.dbgrd(rf_data));
mux_1 #(5) write_register_addr_mux(.i_sel(RegDst),.num0(ID_EX_IR[20:16]),.num1(ID_EX_IR[15:11]),.o_m(write_reg_addr));
mux_1 #(32) write_register_data_mux(.i_sel(MemtoReg),.num0(MEM_WB_Y),.num1(MEM_WB_MDR),.o_m(write_reg_data));
//control
//opcode
localparam LW = 6'b100011;
localparam SW = 6'b101011;
localparam ADD = 6'b000000;
localparam ADDI = 6'b001000;
localparam BEQ = 6'b000100;
localparam J = 6'b000010;
//ALUOp
localparam ALUOP_ADD =3'd0;
localparam ALUOP_SUB =3'd1;
localparam ALUOP_FUNCT =3'd2;
localparam ALUOP_NOP =3'd3;
always @(*) begin
{wb_ctrl,m_ctrl,ex_ctrl}=11'd0;
if(!rst)
case (IF_ID_IR[31:26])
LW :begin
{wb_ctrl,m_ctrl,ex_ctrl}={1'b1,1'b1,1'b0,1'b1,1'b0,1'b0,1'b0,ALUOP_ADD,1'b1};
end
SW :begin
{wb_ctrl,m_ctrl,ex_ctrl}={1'b0,1'b0,1'b0,1'b0,1'b1,1'b0,1'b0,ALUOP_ADD,1'b1};
end
ADD :begin
{wb_ctrl,m_ctrl,ex_ctrl}={1'b1,1'b0,1'b0,1'b0,1'b0,1'b0,1'b1,ALUOP_FUNCT,1'b0};
end
ADDI:begin
{wb_ctrl,m_ctrl,ex_ctrl}={1'b1,1'b0,1'b0,1'b0,1'b0,1'b0,1'b0,ALUOP_ADD,1'b1};
end
BEQ :begin
{wb_ctrl,m_ctrl,ex_ctrl}={1'b0,1'b0,1'b1,1'b0,1'b0,1'b0,1'b0,ALUOP_NOP,1'b0};
end
J :begin
{wb_ctrl,m_ctrl,ex_ctrl}={1'b0,1'b0,1'b1,1'b0,1'b0,1'b1,1'b0,ALUOP_ADD,1'b1};
end
default: begin
end
endcase
end
assign {Jump,RegDst,ALUOp,ALUSrc}=ID_EX_EX;
assign {Branch,MemRead,MemWrite}=EX_MEM_M;
assign {RegWrite,MemtoReg}=MEM_WB_WB;
//alu
mux_1 #(32) alu_in_2_mux(.i_sel(ALUSrc),.num0(ID_EX_B),.num1(ID_EX_IMMI),.o_m(alu_in_2));
alu #(32) arith_ALU(.y(alu_result),.zf(Zero),.a(ID_EX_A),.b(alu_in_2),.m(ALUm));
//alu control
//TODO
localparam m_ADD=3'b000;
localparam m_SUB=3'b001;
localparam m_AND=3'b010;
localparam m_OR =3'b011;
localparam m_XOR=3'b100;
localparam m_NOP=3'b101;
always @(*) begin
case (ALUOp)
ALUOP_ADD : ALUm=m_ADD;
ALUOP_SUB : ALUm=m_SUB;
ALUOP_FUNCT : begin
case (ID_EX_IR[5:0])
6'b100000:ALUm=m_ADD;
default: begin
ALUm=m_NOP;
end
endcase
end
default: begin
ALUm=m_NOP;
end
endcase
end
//TODO MemRead
//data memory
dist_ram data_ram(.clk(clk), .we(MemWrite), .d(EX_MEM_B), .a(EX_MEM_Y[9:2]), .spo(read_mem_data), .dpra(m_rf_addr[9:2]), .dpo(m_data));
//pc mux
mux_1 #(32) pc_mux(.i_sel(PCSrc),.num0(pc_plus),.num1(EX_MEM_NPC),.o_m(pc_next));
assign pc_plus=PC+32'd4;
//pc
always @(posedge clk or posedge rst) begin
if(rst) begin
PC<=32'd0;
end
else begin
PC<=pc_next;
end
end
//IF-ID
always @(posedge clk or posedge rst) begin
if(rst) begin
IF_ID_NPC<=32'd0;
IF_ID_IR<=32'd0;
end
else begin
IF_ID_NPC<=pc_plus;
IF_ID_IR<=instruction;
end
end
//ID-EX
always @(posedge clk or posedge rst) begin
if(rst) begin
ID_EX_NPC<=32'd0;
ID_EX_IR<=32'd0;
ID_EX_A<=32'd0;
ID_EX_B<=32'd0;
ID_EX_IMMI<=32'd0;
ID_EX_WB<=2'd0;
ID_EX_M<=3'd0;
ID_EX_EX<=6'd0;
end
else begin
ID_EX_NPC<=IF_ID_NPC;
ID_EX_IR<=IF_ID_IR;
ID_EX_A<= read_reg_data_1;
ID_EX_B<= read_reg_data_2;
ID_EX_IMMI<=,{IF_ID_IR[15:0]}};
ID_EX_WB<=wb_ctrl;
ID_EX_M<=m_ctrl;
ID_EX_EX<=ex_ctrl;
end
end
//EX-MEM
mux_1 #(32) npc_mux(.i_sel(Jump),.num0(br_pc),.num1(j_pc),.o_m(n_pc));
assign br_pc=ID_EX_NPC+{ID_EX_IMMI[29:0],2'd0};
assign j_pc ={ID_EX_NPC[31:28],{ID_EX_IR[25:2]},{2'd0}};
always @(posedge clk or posedge rst) begin
if(rst) begin
EX_MEM_NPC<=32'd0;
EX_MEM_ZF<=1'd0;
EX_MEM_Y<=32'd0;
EX_MEM_B<=32'd0;
EX_MEM_WA<=5'd0;
EX_MEM_WB<=2'd0;
EX_MEM_M<=3'd0;
EX_MEM_J<=1'd0;
end
else begin
EX_MEM_NPC<=n_pc;
EX_MEM_ZF<=Zero;
EX_MEM_Y<=alu_result;
EX_MEM_B<=ID_EX_B;
EX_MEM_WA<=write_reg_addr;
EX_MEM_WB<=ID_EX_WB;
EX_MEM_M<=ID_EX_M;
EX_MEM_J<=Jump;
end
end
assign PCSrc=(Branch&EX_MEM_ZF)|EX_MEM_J;
//MEM-WB
always @(posedge clk or posedge rst) begin
if(rst) begin
MEM_WB_MDR<=32'd0;
MEM_WB_Y<=32'd0;
MEM_WB_WA<=5'd0;
MEM_WB_WB<=2'd0;
end
else begin
MEM_WB_MDR<=read_mem_data;
MEM_WB_Y<=EX_MEM_Y;
MEM_WB_WA<=EX_MEM_WA;
MEM_WB_WB<=EX_MEM_WB;
end
end
endmodule
